Faro Barcelona

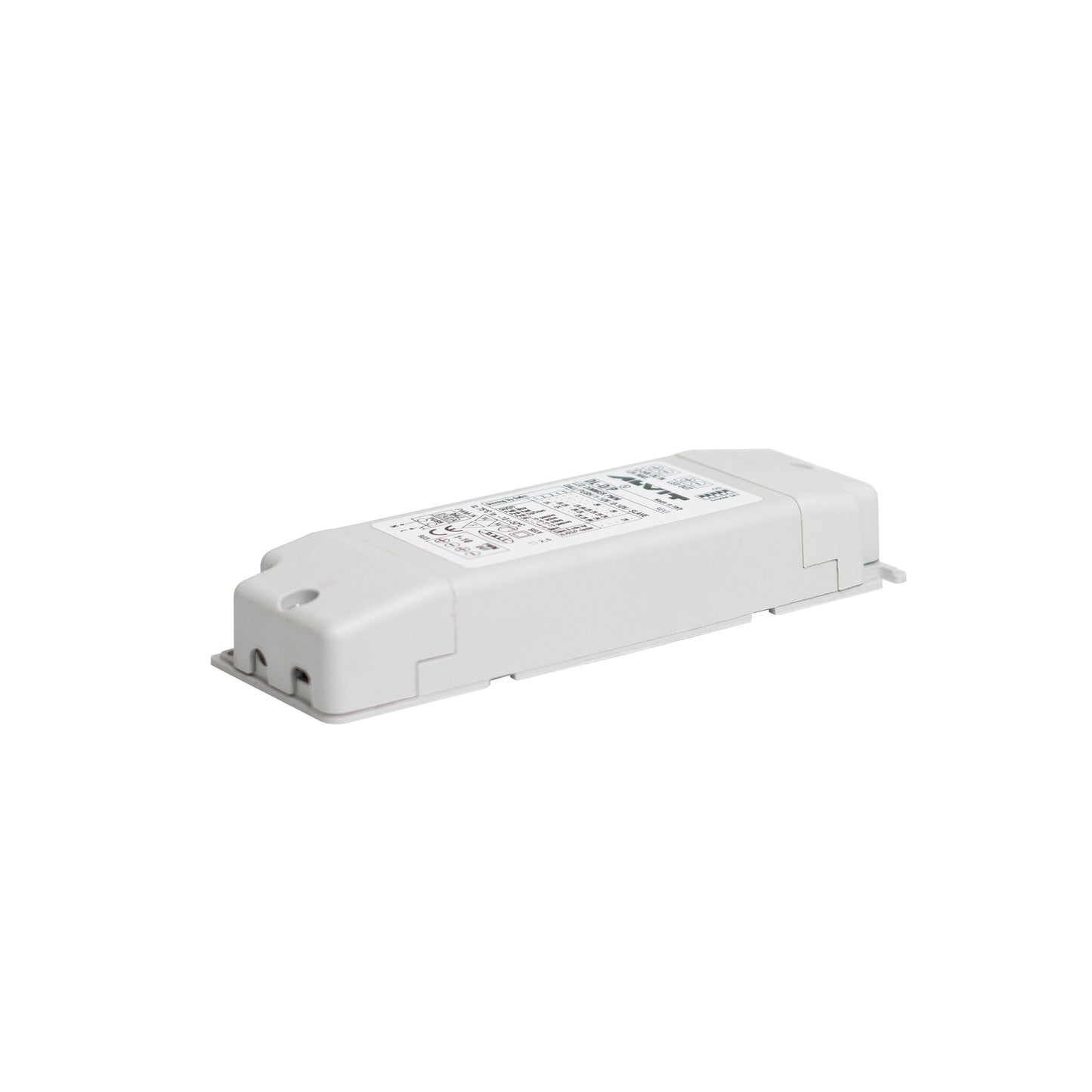

REGULADOR DRIVER LED AC022 12/24V 12A
REGULADOR DRIVER LED AC022 12/24V 12A
20 en existencias
Devoluciones en 14 días • Envío gratis €500+
Pago seguro • Productos certificados • Garantía 2–5 años
Eleve el diseño de su iluminación con el modelo REGULADOR DRIVER LED AC022 12/24V 12A de la marca Faro Barcelona. Este driver and transformer cuidadosamente elaborado combina la estética arquitectónica con una iluminación funcional.
Light dimmer for voltage 12-48Vdc LED driver Indipendent box Push dimming (slow, fast profile, up/down) DALI 0-10V dimming 1-10V dimming IP20 degree protection Nominal life-time up 50000h at Tc max Flicker free Complying with EN61347- 2-13, EN61347-1, EN62384, EN55015, EN61547 Screwable terminals connection IN, OUT, DALI/Push 2.5mmq Master and SLAVE function compatible with AL20D/p and AL42D/P Input voltage 12-48Vdc Maximum output current 12A Dimming frequency >2KHz Ambient temperature range -25 ÷ 50°C Max case temperature on Tc point 70°C Weight 0.13Kg Cable clamp for cable diameter ø 4 ÷ 6mm
Especificaciones técnicas
| Brand / Manufacturer | Faro Barcelona |
| box height [number] | 0.0 |
| box length [number] | 0.0 |
| box weight [number] | 9.9999998E-3 |
| box width [number] | 0.0 |
| bulb description | 288W |
| bulb included | false |
| diameter [number] | 0.0 |
| driver details | NULL |
| driver included | false |
| electric class | III |
| height [number] | 0.0 |
| ind box height [number] | 0.0 |
| ind box length [number] | 0.0 |
| ind box volume [number] | 0.0 |
| ind box weight [number] | 9.9999998E-3 |
| ind box width [number] | 0.0 |
| ip rating [number] | 20 |
| length [number] | 0.0 |
| material | CUERPO DE PC |
| volume [number] | 0.0 |
| width [number] | 0.0 |
Envío
Tiempos de entrega promedio:
- Europa: 5–14 días háb.
- Reino Unido: 7–17 días háb.
- Estados Unidos: 10–25 días háb.
Cancelación de pedido: En un plazo de 24 horas antes del envío.
Garantía y certificaciones
Los productos cuentan con certificados de calidad oficiales y están aprobados para su uso en Europa (CE) y EE. UU. (UL/FCC).
Garantía oficial del fabricante: de 2 a 5 años.
Servicios profesionales y archivos técnicos (3D, BIM)
